Centre marketing industry in Punta Umbria, Huelva

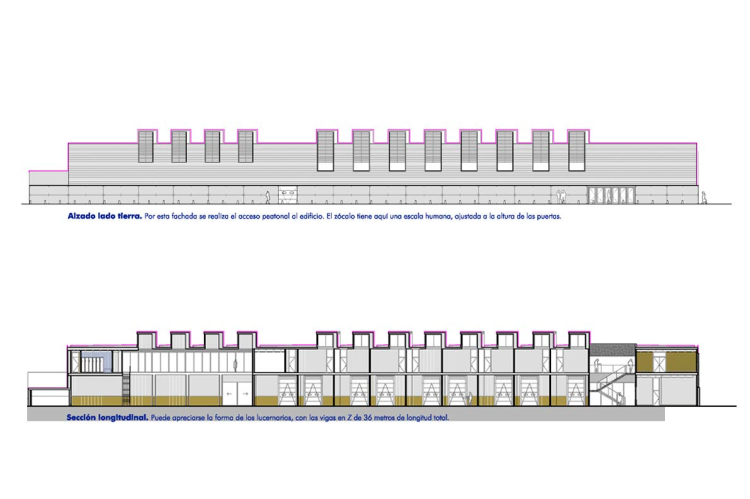

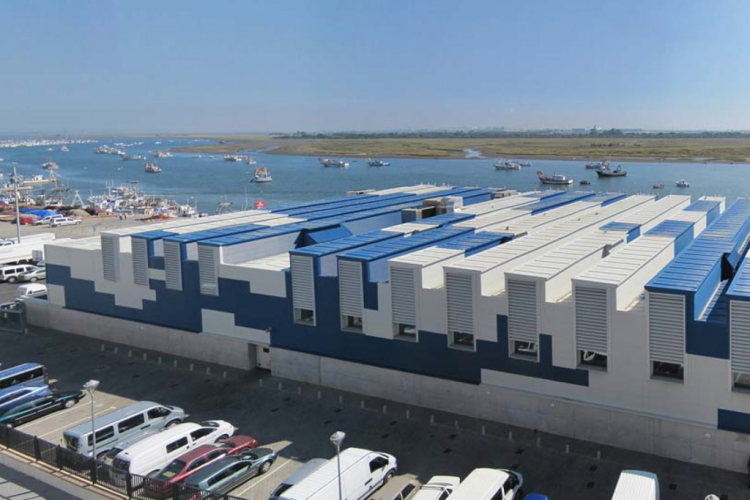

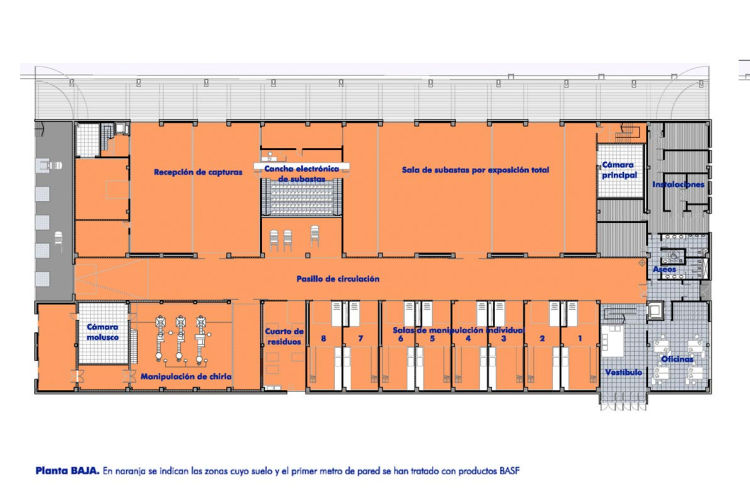

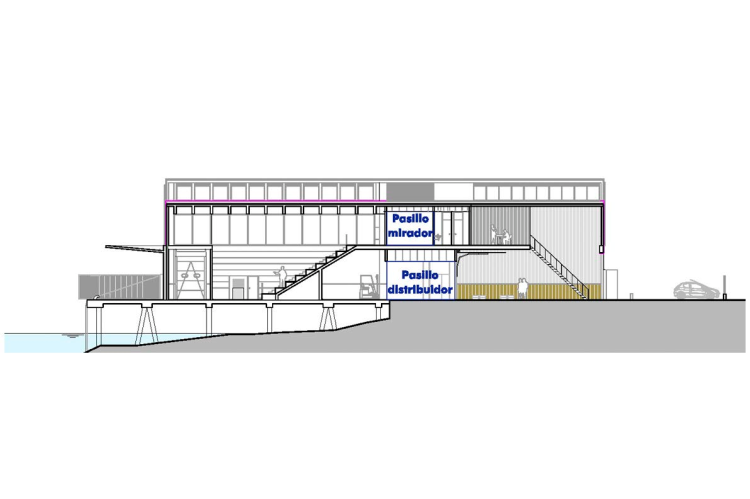

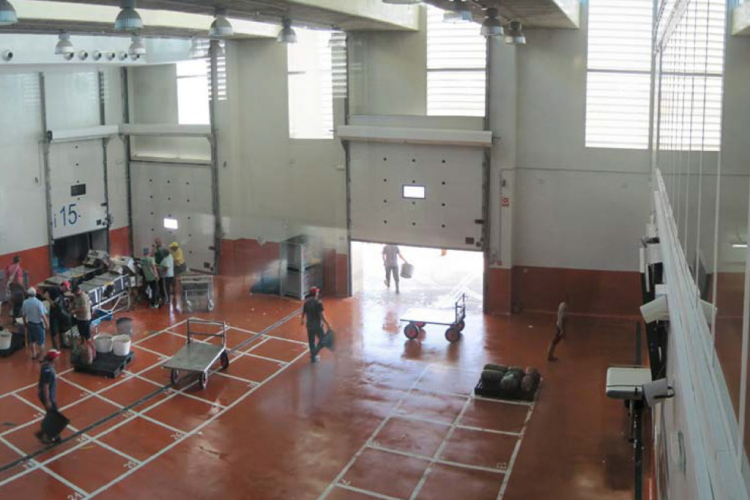

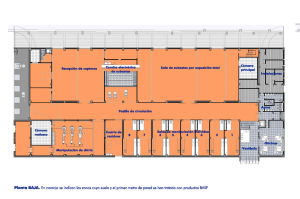

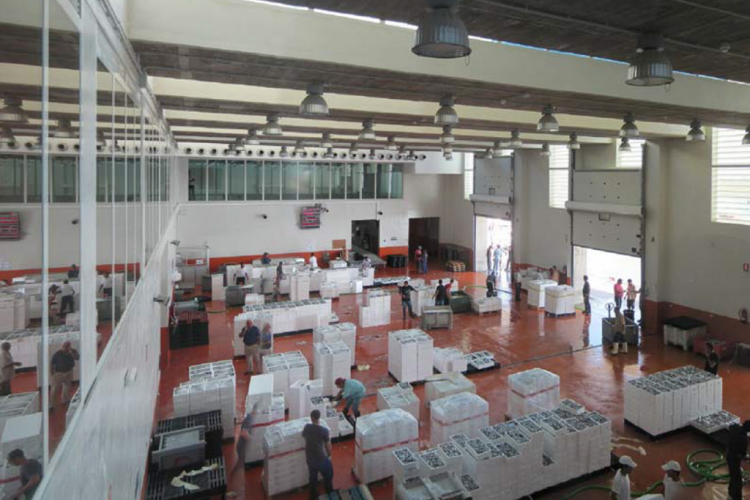

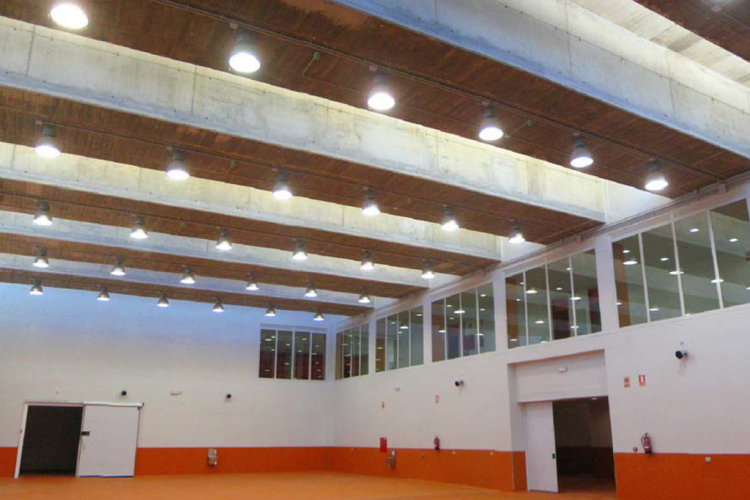

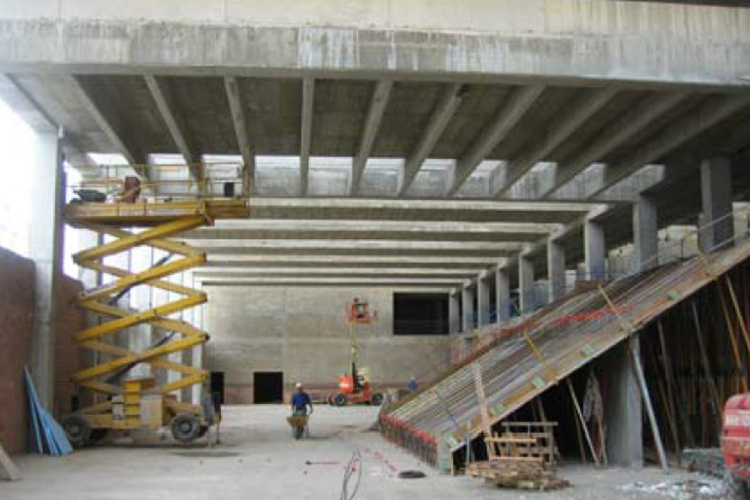

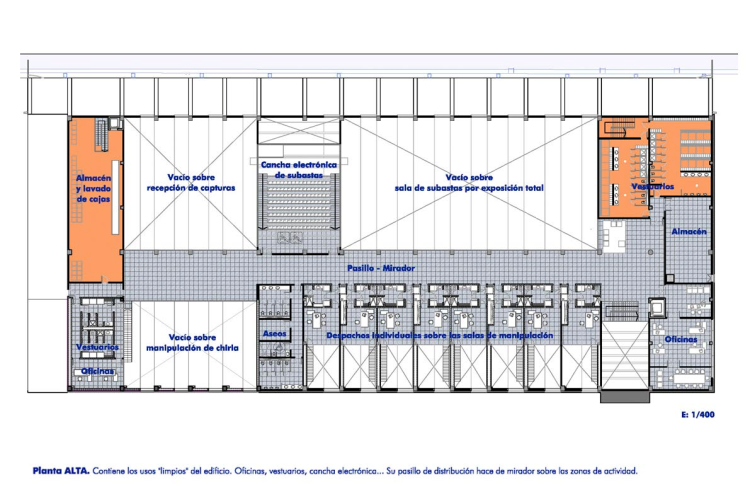

BUILDING DESCRIPTION The new Center Comercializción THE FISH-known more colloquially as market-is conceived as a large industrial container. With dimensions 90x36 meters in plan, appears externally through a prsmático volume. In contato to the ground, a concrete base defends the building. On this one, the building is closed with metal panels minionda sheet in a bicolor composition extends from the facades to the deck. Because of the important building lights (two bays of 18 meters and to adequately illuminate the interior spaces, a large concrete beams are arranged in a "Z" that cross transversely and allow open skylights to north. The main workspaces (receiving traps, auction total exposure, handling rooms) are performed in double height. A central corridor runs through the building upstairs, allowing visitors to watch the activity without interfering with it. BASF PRODUCTS USED. TECHNICAL SOLUTION: Royal Decree 1473/1992 of 27 September determines the health conditions for the production and marketing of fishery products. Requires that both soils and walls are smooth and easy limpiear surfaces resistant and waterproof. The soil must have ways and mechanisms to remove water. After exploring various alternatives, BASF was chosen to advise us about lso products to use. Based on the requirements of the RD, the following products were chosen: SOILS: EPOXI -IMPRIMACIÓN mastertops p 611 -Pavimento 4mm colored epoxy MASTERTOP BC 340 -Sellado Fluid epoxy MASTERTOP BC 310 WALLS: -Revestimiento 1.5mm. Mastertop® bc340 -Sellado Fluid epoxy MASTERTOP BC 310 EXPLANATION OF USE OF MATERIAL 1.LIMPIEZA: For good adhesion to properly prepare the surface. Milling was performed to roughen, limiándose to remove particles that may reduce adhesion. 2.MASTERTOP P 611: Primer MASTERTOP P 611 is then applied to seal the surface with short nap roller. 3.MASTERTOP 340 BC: After half an hour, with fresh primer, epoxy resin mortar MASTERTOP BC 340 is applied, extending it with a rake 4mm Barbed calibrated to achieve the required thickness of mortar. Acontinuación, smoothed and compacted manually by flat metal 4.MASTERTOP 310 BC: Once elapsed clock, aspirate the surface to remove dust is performed, and sealing MASTERTOP BC 310, which will ensure adequate impermeability to continuous washdowns to be made for cleaning applies floors and walls.

BASF Architecture Award
Datos

Modalidad Non-residential private buildings

Uso

Dirección C/ Ría
Punta Umbría
Huelva (Spain)

Autores
Arquitectura
  • Isaías González-Ocampo Dorta
  • Francisco A Pardo Campo
  • Javier Salacedo Cabbello
